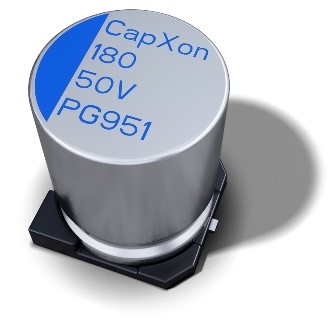

Solid Conductive Polymer Capacitors – SMD
2020-06-29

Features









Series

High Temperature

High Voltage

Low ESR

Low Height

Standard

Ultra Long Life

Temperature Range

(°C)

Voltage

Range

(V)

Capacitance Range

(µF)

Endurance

(hours)

Series
Datasheet

PD





-55

+105

2.5

100

10

3300

2000

PM







-55

+105

2.5

100

4.7

560

2000

PV







-55

+105

2.5

100

6.8

2500

2000

PR











-55

+105

6.3

50

10

1500

5000

PG









-55

+125

6.3

50

10

1500

2000





Related technical documentation:

General Precautions & Guidelines

Packaging Information

Includes following information:Includes following information:

Precautions and handling guidelines for all product technologies

Product code configuration and technical options

  Soldering profiles and restrictions

Available packaging styles and packaging units



3D - Models











Includes following information:

Library of 3D STP-files
