Hybrid Conductive Polymer Capacitors – SMD

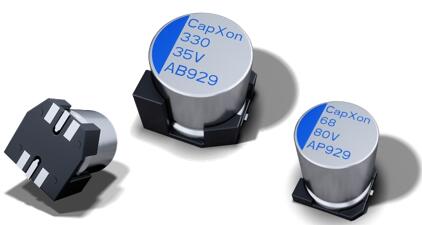

Features | ![](files/Hybrid SMD1.jpg)
|
![](files/Hybrid%20SMD3.jpg) |
Series |
AEC-Q200 |
High Temperature |
Low ESR |
Slim Type |
Standard |
Ultra Miniaturized |
Ultra Low ESR |
Vibration Proof |
Temperature Range
(°C) |
Voltage Range
(V) |
Capacitance Range
(µF) |
Endurance (hours) |
Series Datasheets |
AA |
|
● |
|
● |
● |
● |
|
|
● |
-55 |
105 |
16 |
200 |
10 |
1500 |
5000 to 10000 |
![](../img/download1.png) |
AC |
|
● |
● |
● |
● |
|
|
|
● |
-55 |
125 |
16 |
100 |
10 |
1500 |
4000 |
![](../img/download1.png) |
AB |
|
● |
● |
● |
|
|
● |
● |
● |
-55 |
125 |
25 |
35 |
33 |
680 |
4000 |
![](../img/download1.png) |
AN |
|
● |
● |
● |
|
|
|
|
● |
-55 |
135 |
16 |
100 |
10 |
820 |
4000 |
![](../img/download1.png) |
AU |
![](files/new.png) |
● |
● |
|
|
|
|
● |
● |
-55 |
135 |
25 |
100 |
22 |
680 |
4000 |
![](../img/download1.png) |
AR |
|
● |
● |
● |
|
|
|
|
● |
-55 |
145 |
16 |
80 |
22 |
560 |
2000 |
![](../img/download1.png) |
AP |
|
● |
● |
● |
|
|
|
|
● |
-55 |
150 |
16 |
80 |
22 |
560 |
1000 |
![](../img/download1.png) |
|
ECONOMY SERIES FOR NON-AUTOMOIVE APPLICATIONS |
Series |
AEC-Q200 |
High Temperature |
Low ESR |
Slim Type |
Standard |
Ultra Miniaturized |
Ultra Low ESR |
Vibration Proof |
Temperature Range
(°C) |
Voltage Range
(V) |
Capacitance Range
(µF) |
Endurance (hours) |
Series Datasheets |
YA |
![](files/new.png) |
|
|
● |
|
● |
|
|
|
-55 |
105 |
16 |
100 |
10 |
1500 |
10000 |
![](../img/download1.png) |
YC |
![](files/new.png) |
|
● |
● |
|
● |
|
|
|
-55 |
125 |
16 |
100 |
10 |
1500 |
4000 |
![](../img/download1.png) |
YB |
![](files/new.png) |
|
● |
● |
|
● |
● |
● |
|
-55 |
125 |
25 |
35 |
33 |
680 |
4000 |
![](../img/download1.png) |
