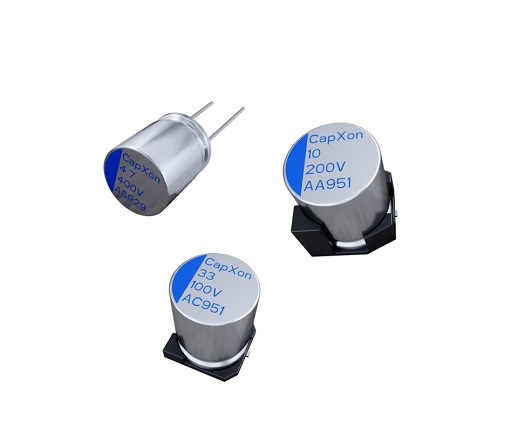

Hybrid Conductive Polymer Capacitors
2020-07-07

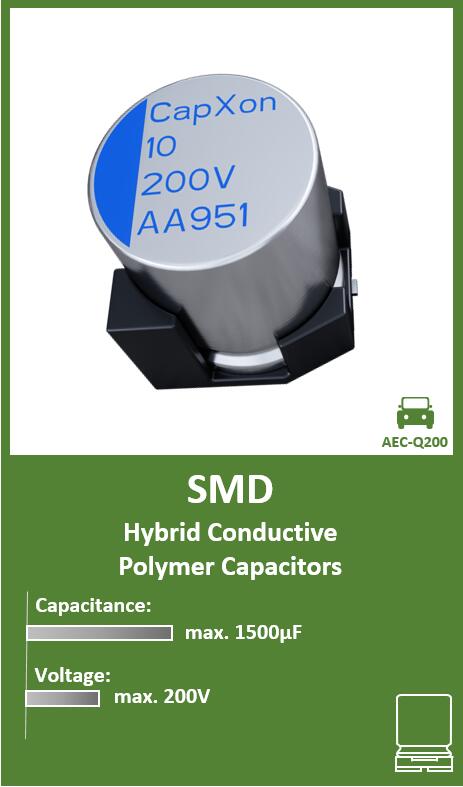

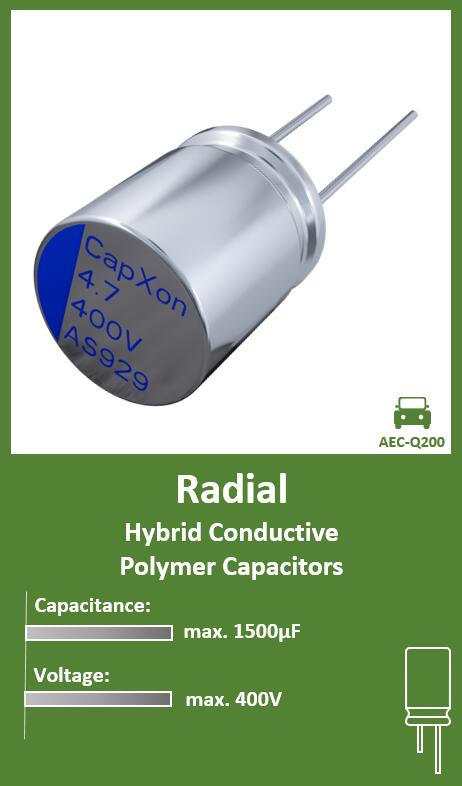

Available Mounting Styles & Details:





Our Hybrid Conductive Polymer Capacitors serve best of electrolytic cap technology.
They are the best choice for harsh conditions and long lifetime performance.



Facts:



Parameters

Details

 Capacitance Range:

1.2µF   …    1500µF

 Voltage Range:

16V   …   400V

 Endurance Options:

1000h   …   10000h

 Temperature Range Max:

105°C / 125°C / 135°C / 145°C / 150°C

 Temperature  Range Min:

-55°C

 Ripple Current Range:

160mA   …   5000mA @100kHz

16mA    …   500mA @120Hz



Markets & Applications:









Product Search

Technical Information



Technology:

Hybrid Conductive Polymer

Description

Features



Rated Voltage ▪ VR

16 VDC to 400 VDC

Cathode Material

Solid Conductive Polymer & Liquid Electrolyte

Self-Healing of Dielectric

Yes

ESR

Very low ESR at high frequency

Stability

Even more stable than liquid type

Leakage
 Current  ▪
I
LEAK

Lower leakage current than Solid Conductive Polymer Type

Reliability

Automotive
AEC-Q200 products available

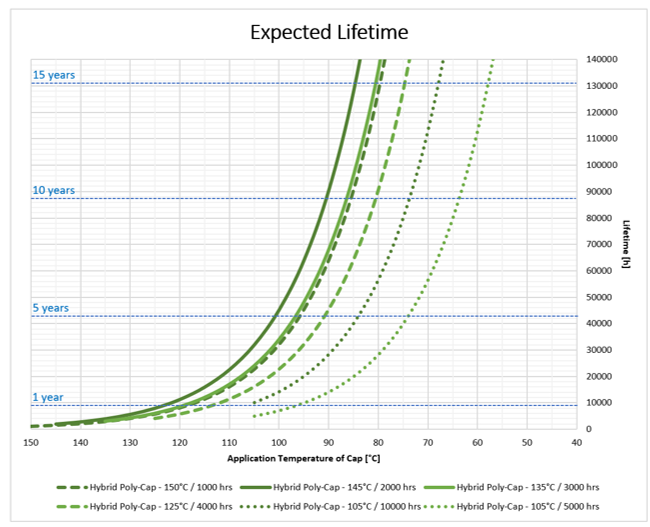

Remark: Exemplary graphs. Lifetime at real conditions is limited.

Life Estimation – „Rule of Thumb“:

LA … Expected lifetime at application conditions
L0 … Specified lifetime at max. capacitor temperature, rated voltage (and rated ripple current)
T0_Max… Upper category temperature
TA … Application temperature, operating temperature



For more detailed expected lifetime calculation models check>>>
