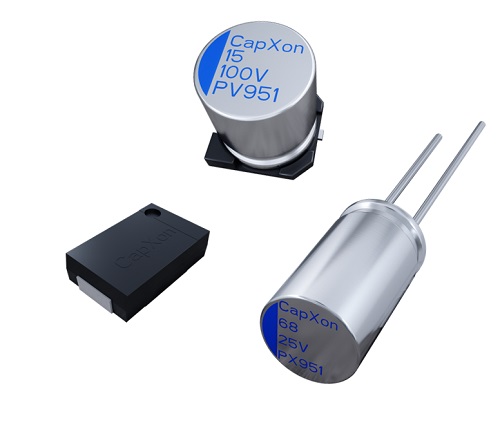

Solid Conductive Polymer Capacitors
2020-07-07

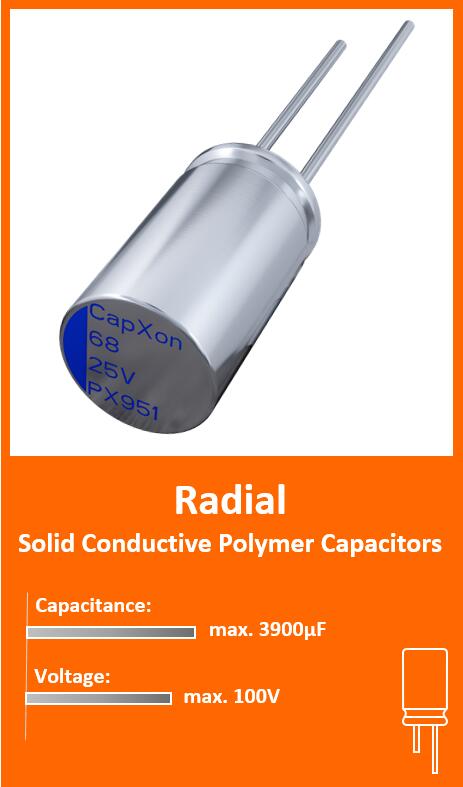

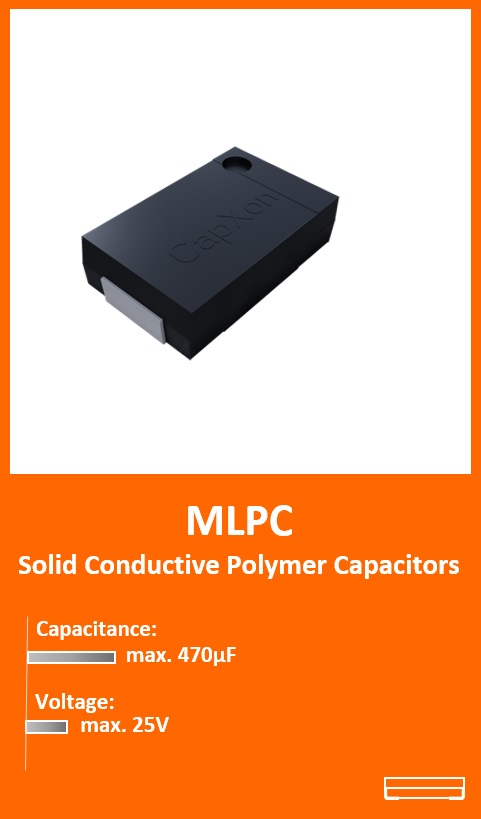

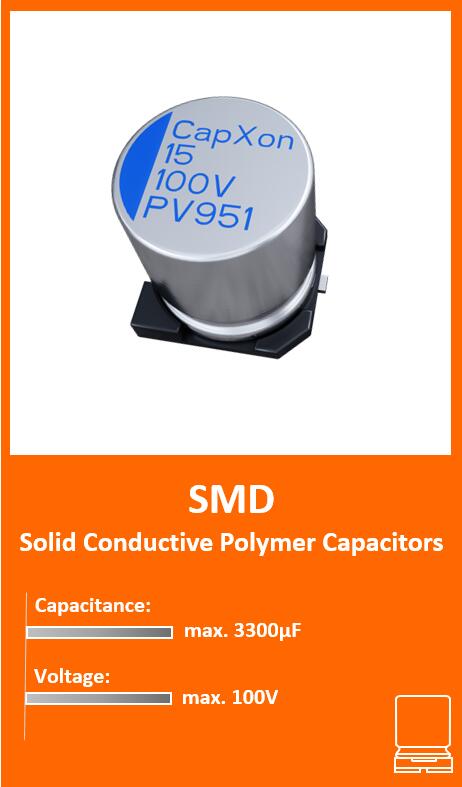

Available Mounting Styles & Details:




Our Solid Conductive Polymer Capacitors offer an outstanding electrical stability.
They are perfect for all long life performance cases and providing and ultra low ESR.



Facts:



Parameters

Details

 Capacitance Range:

4.7µF   …   3900µF

 Voltage Range:

2V  …   100V

 Endurance Options:

2000h  …  5000h

 Temperature Range Max:

105°C / 125°C

 Temperature  Range Min:

-55°C

 Ripple Current Range:

310mA   …  8500mA @100kHz

16mA  …  425mA @120Hz



Markets & Applications:






Product Search

Technical Information

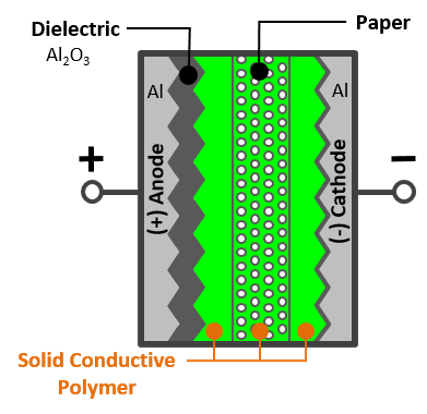

Technology:



Solid Conductive Polymer

Description

Features

Rated Voltage ▪ VR

2 VDC to 100 VDC

Cathode Material



Solid Conductive Polymer

Self-Healing of Dielectric

No

ESR

Ultra-low ESR at high frequency

Stability

Stable for low and high temperature

Lifetime

Very stable and long life - no dry out

Reliability

Only internal standard qualification

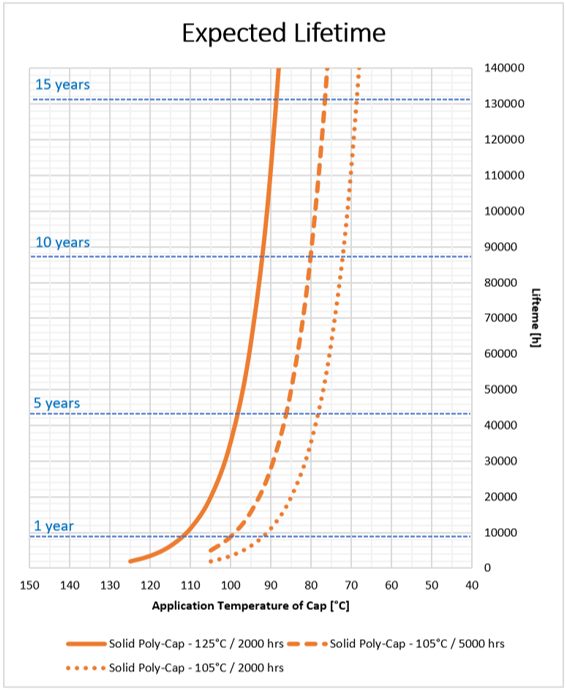

Remark: Exemplary graphs. Lifetime at real conditions is limited.

Life Estimation – „Rule of Thumb“:

LA Expected lifetime at application conditions
L0 … Specified lifetime at max. capacitor temperature, rated voltage (and rated ripple current)
T0_Max… Upper category temperature
TA … Application temperature, operating temperature



For more detailed expected lifetime calculation models check >>
