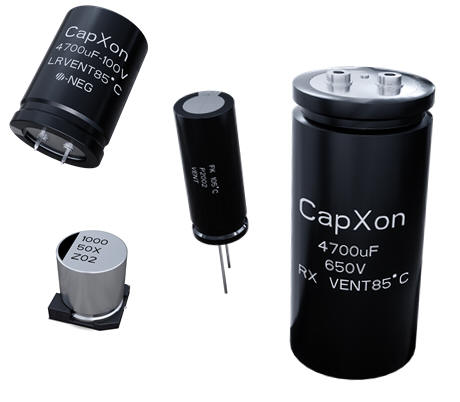

Aluminum Electrolytic Capacitors
2020-07-07

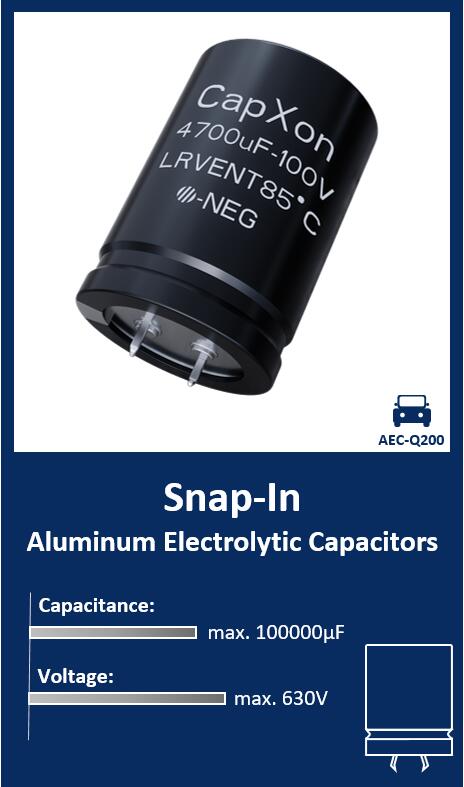

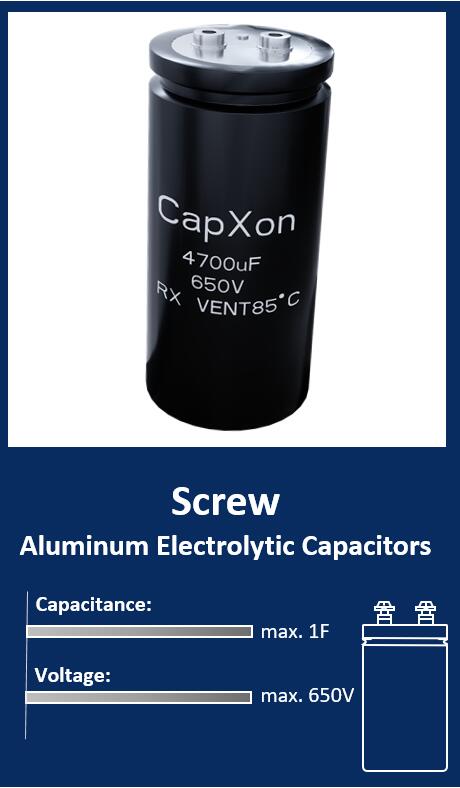

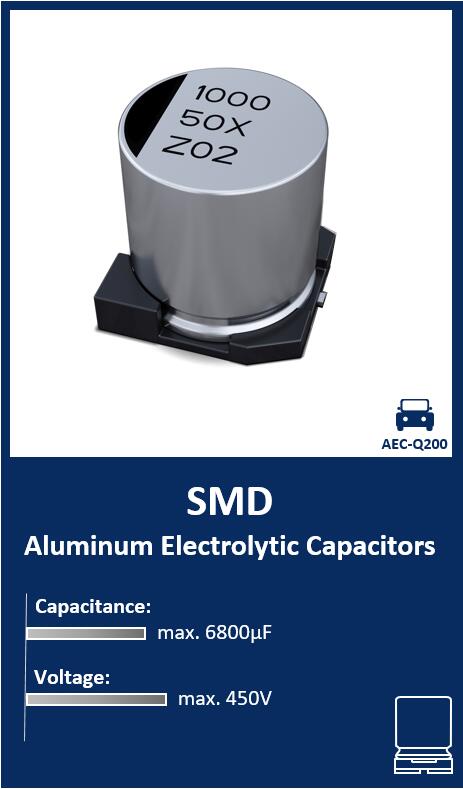

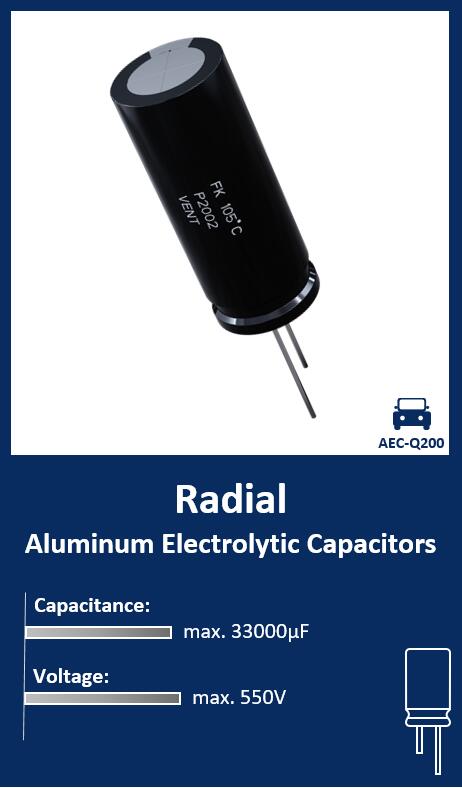

Available Mounting Styles & Details:



Our original Aluminum Electrolytic Capacitors and CapXon‘s origin.
They are our highrunner and up to date in technology.



Facts:



Parameters

Details

 Capacitance Range:

0.1µF   …    1F

 Voltage Range:

4V   …    650V

 Endurance Options:

1000h  …   10000h

 Temperature Range Max:

85°C / 105°C / 125°C / 130°C

 Temperature  Range Min:

-55°C / -40°C / -25°C

 Ripple Current Range:

1mA    …   84A @100kHz

0.7mA   …   60A @120Hz



Markets & Applications:






Product Search

Technical Information



Technology:



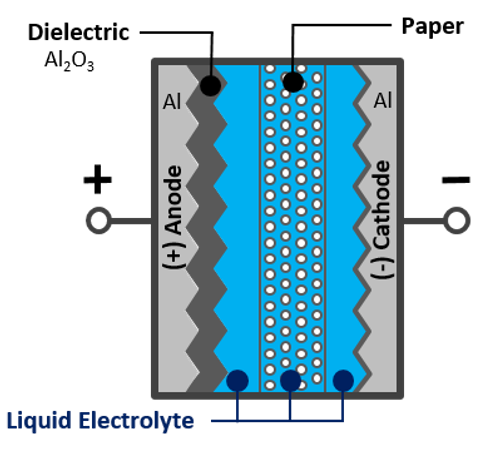

Aluminum Electrolyte

Description

Features

Rated Voltage ▪ VR

4 VDC to 650 VDC

Cathode Material

Liquid Electrolyte

Self-healing of Dielectric

Yes

Package

Widest range in all sizes

Stability

Reduced performance at

low temperature

Lifetime

Limited life at high temperature

Reliability

Automotive
AEC-Q200 products available

Remark: Exemplary graphs. Lifetime at real conditions is limited.

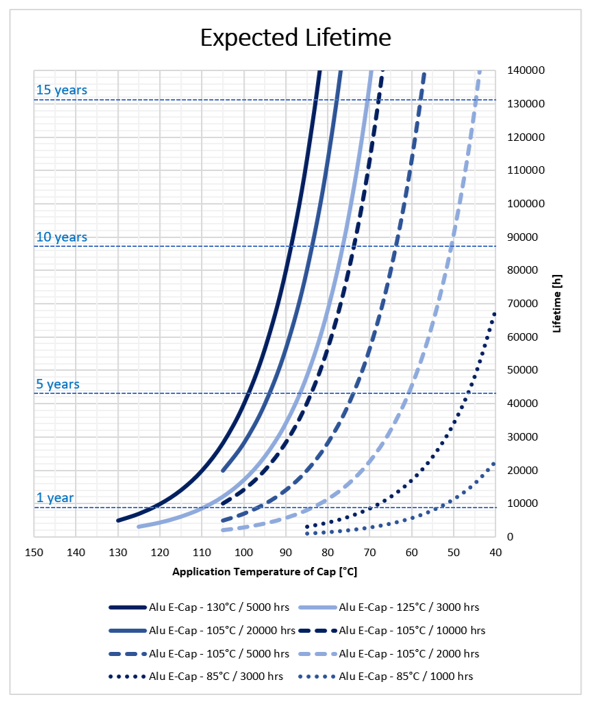

Life Estimation – „Rule of Thumb“:

LA … Expected lifetime at application conditions
L0 … Specified lifetime at max. capacitor temperature, rated voltage (and rated ripple current)
T0_MaxUpper category temperature
TA … Application temperature, operating temperature



For more detailed expected lifetime calculation models check >>
