Features |  | |
 |  |
Series | High Temperature | High Voltage | Low ESR | Low Height | Standard | Ultra Low ESR | Ultra Long Life | Ultra Miniaturized | Temperature Range (°C) | Voltage Range (V) | Capacitance Range (µF) | Endurance (hours) | Series | |||
PS |
|
| ● |
| ● |
|
|
| -55 | +105 | 2.5 | 25 | 39 | 3500 | 2000 |
|
PL |
|
| ● |
|
|
|
|
| -55 | +105 | 2.5 | 16 | 180 | 3500 | 2000 |
|
PU |
|
|
|
|
| ● |
|
| -55 | +105 | 2.5 | 10 | 180 | 3900 | 2000 |
|

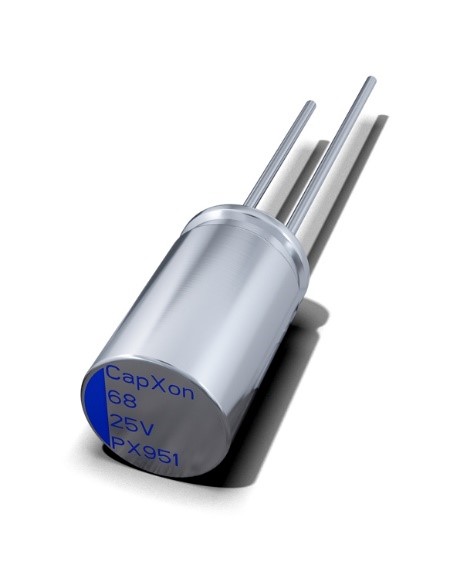

PX |
|
| ● | ● |
|
|
|
| -55 | +105 | 2.5 | 25 | 6.8 | 820 | 2000 |
|

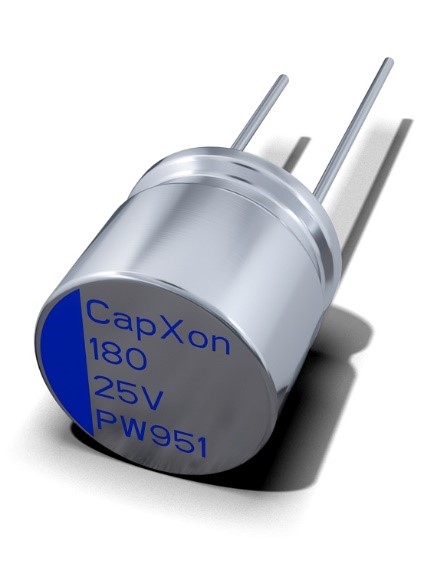

PW |
|
| ● | ● |
|
|
|
| -55 | +105 | 2.5 | 25 | 39 | 2500 | 2000 |
|
PE |
|
| ● |
|
|
|
| ● | -55 | +105 | 2.5 | 16 | 270 | 1200 | 2000 |
|
PH |
| ● | ● |
|
|
|
|
| -55 | +105 | 35 | 100 | 6.8 | 330 | 2000 |
|
PF |
|
| ● |
|
|
| ● |
| -55 | +105 | 2.5 | 35 | 10 | 2700 | 5000 |
|
PT | ● |
| ● |
|
|
|
|
| -55 | +125 | 2.5 | 50 | 22 | 2700 | 2000 |
|
| Related technical documentation: |
General Precautions & Guidelines | Packaging Information | ||
|
| ||
|
| ||
| Includes following information: | Includes following information: | ||
| Precautions and handling guidelines for all product technologies |
| Product code configuration and technical options |
| Soldering profiles and restrictions |
| Available packaging styles and packaging units |
3D - Models | Reliability Tests |
| |
| |
| Includes following information: | Includes following information: |
Library of 3D STP-files | Test specification and criteria |
